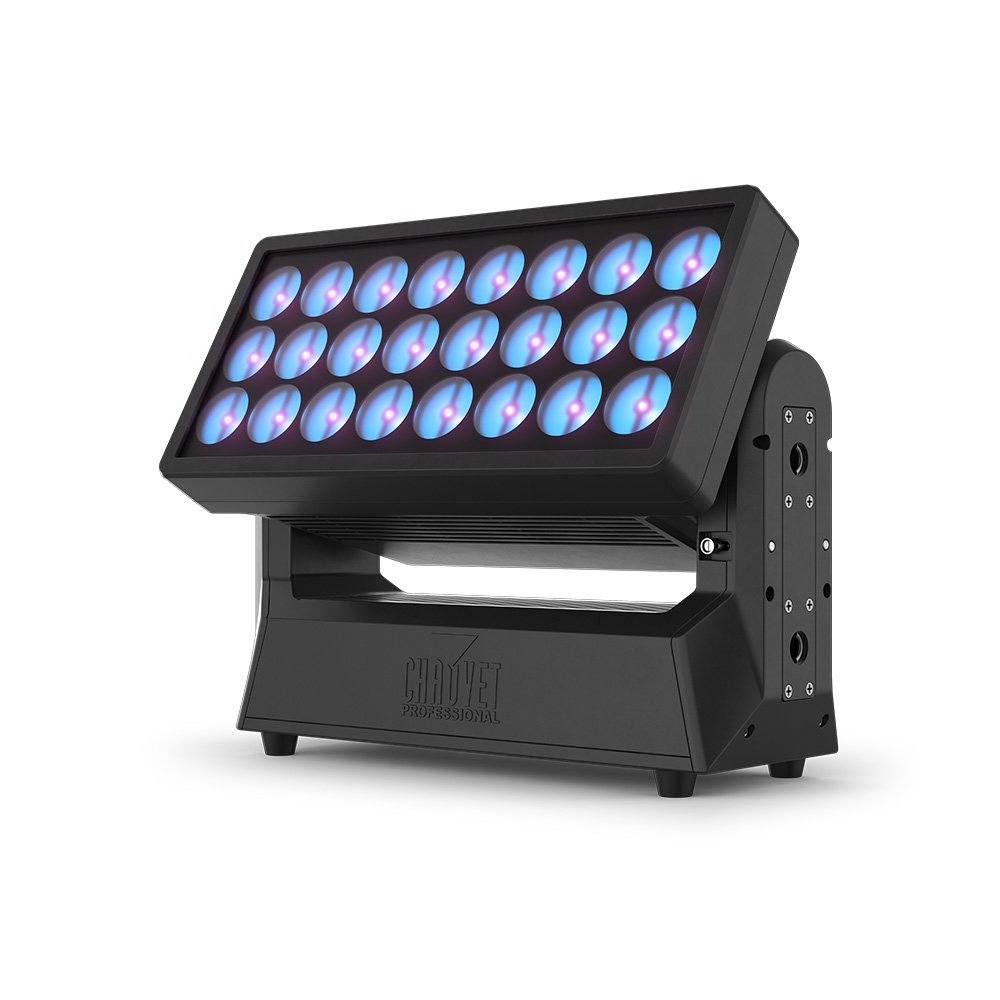

Chauvet Pro Strike V IP65 Dual LED Diode Strobe Light with 180 Degree Tilt

Code: CHAPROSTRIKEV

Dynamic Chauvet Pro Strike V IP65: dual-layer LED strobe/wash with 180° tilt. IP65 rated for all-weather, pixel-mappable eye candy & vibrant washes.






Please call us on +353 (0)74 91 45179 for a price.
Or Email info@ror.ie for more information.
Chauvet Pro Strike V IP65 Dual LED Diode Strobe Light with 180 Degree Tilt

Introducing the next evolution in impactful lighting: the Chauvet Professional Strike V IP65. This tour-ready, all-weather hybrid strobe and wash fixture delivers dynamic dual-layer pixel effects with a vibrant punch, bringing fresh and unique looks to your stage.

The Strike V features innovative dual LED diodes beneath a variable electronic frost plate, allowing for instant beam angle adjustments at the touch of a button. This combination unlocks a spectrum of new multicolor creative possibilities, from stunning strobe effects to vibrant color washes and captivating eye-candy looks. Designed for demanding applications, the Strike V boasts a motorized 180° tilt, 48 individually controllable pixels, and smooth 16-bit dimming. Its IP65 rating ensures reliable performance in any weather condition. Thoughtful features include a magnetically attachable stealth filter, versatile mounting options with a repositionable yoke, RDM control, an easy-to-use OLED display, and failsafe Ethernet connectivity.

Key Features:
  • IP65 Rated Hybrid Strobe/Wash: All-weather performance with 180° motorized tilt.
  • Dynamic Dual-Layer Pixel Effects: 48 individually controllable pixels for captivating visuals.
  • Variable Electronic Frost: Instantly adjust beam angles for added eye candy.
  • Magnetic Stealth Filter: Hides LEDs when not in use for a clean look.
  • Versatile Mounting: Multiple locations and repositionable yoke for creative rigging (vertical/horizontal).
  • RDM Control: Remote Device Management over DMX for fixture reporting.
  • Smooth 16-bit Dimming: Precise control over fades.
  • Easy-to-Use OLED Display: Intuitive menu navigation.
  • Rugged Design: Built for years of reliable use in extreme conditions.
  • Adjustable PWM: Flexibility for on-camera applications.
  • USB Port: For easy fixture software updates.
  • Built-in Alignment Pins: Ensures perfect linear array alignment.
  • Failsafe Ethernet Connectivity: Data continues even if power is lost.
The Chauvet Professional Strike V IP65 redefines the strobe/wash category, offering unparalleled versatility, dynamic effects, and rugged reliability for the most demanding lighting professionals.
Optical
  • Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
  • Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
  • Beam Angle (Combine): 9.9°
  • Beam Angle (Dot): 105.7°
  • Beam Angle (Cell): 9.9°
  • Beam Angle (w/E-Frost Combine): 50.3°
  • Beam Angle (w/E-Frost Dot): 103.1°
  • Beam Angle (w/E-Frost Cell): 46.8°
  • Field Angle (Combine): 17.6°
  • Field Angle (Top Plate): 153.1°
  • Field Angle (Cell): 17.5°
  • Field Angle (w/E-Frost Combine): 125°
  • Field Angle (w/E-Frost Dot): 155.6°
  • Field Angle (w/E-Frost Cell): 117.2°
  • Lumens (Combine): 19,589
  • Lumens (Dot): 1,912
  • Lumens (Cell): 17,127
  • Lumens (w/E-Frost Combine): 13,406
  • Lumens (w/E-Frost Dot): 1,633
  • Lumens (w/E-Frost Cell): 15,769
  • Illuminance (Combine): 16,779 lux @ 5 m
  • Illuminance (Dot): 29 lux @ 5 m
  • Illuminance (Cell): 16,789 lux @ 5 m
  • Illuminance (w/E-Frost Combine): 539 lux @ 5 m
  • Illuminance (w/E-Frost Dot): 26 lux @ 5 m
  • Illuminance (w/E-Frost Cell): 536 lux @ 5 m
  • Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz

Dynamic Effects
  • Tilt: 180°
  • Tilt Ranges: 0° to 180°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical
  • Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
  • Weight: 36 lb (16.3 kg)
  • Exterior Color: Black
  • Housing Material: AZ91D Magnesium diecast

Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

Control
  • Control Protocol: Art-Net, DMX, RDM, sACN
  • DMX, ArtNet, and sACN Channels single mode 29,222,314
  • DMX, ArtNet, and sACN Channels Dual mode Movement: 30
  • DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144,192,240,288
  • ArtNet and sACN Channels Multi-Layer Control Movement: 30
  • ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72,96,120,144
  • ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72,96,120,144

Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
  • Power and Current: 747 W, 6.20 A @ 120 V, 60
  • Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
  • Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
  • Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz

Battery
  • Battery type: Lithium Ion
  • Rechargeable: Yes

Certifications / Qualifications
  • CE, MET, ROHS, FCC
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included
  • STRIKE V
  • Seetronic Powerkon IP65 power cord
  • Omega bracket
  • Stealth filter

Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-08
  • IP Rated Seetronic® Powerkon Extensions
  • IP Rated DMX cables
  • IP Rated EtherCon Cables
  • UPLOAD 03 software uploader
