Code: MAX-360Z
Powerful 360W multi-zone amplifier for PA & background music. Features USB/FM player, mic inputs, and 5 zones. Perfect for commercial & educational spaces.
€1,075.00
In Stock
QtyAdd to Cart

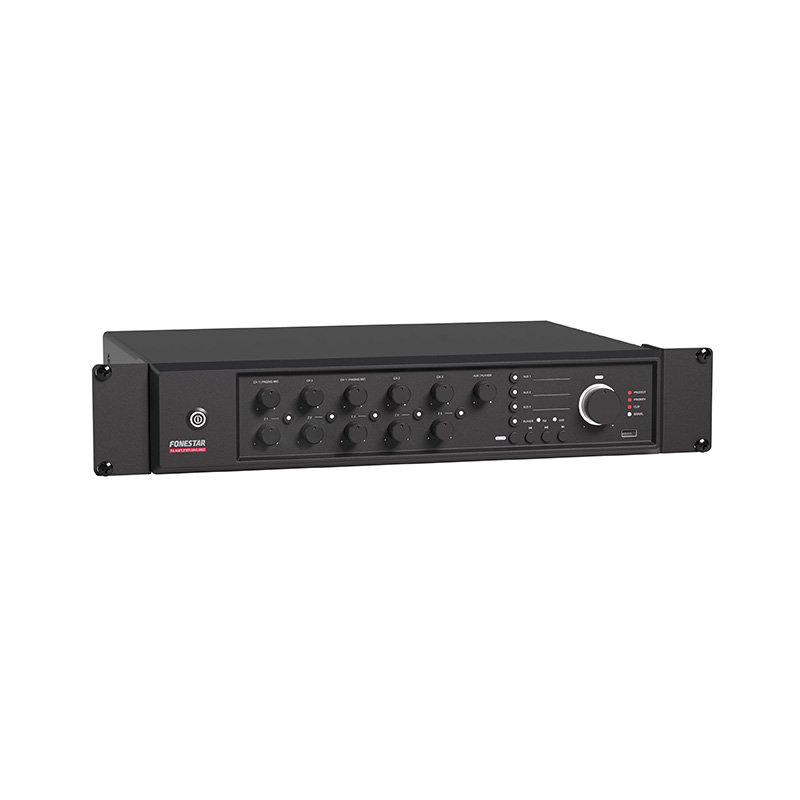

Fonestar MAX 360Z - 360w 100v Line Mixer Amplifier with USB/FM Player and 5 Zoned Speaker Outputs
Delivering exceptional sound clarity and efficiency, the Fonestar MAX 360Z is a high-performance 360W line mixer amplifier designed for diverse audio applications.
Equipped with a cutting-edge Class D amplifier, this unit ensures long-lasting performance and optimal sound quality in any environment. Its five independent output zones allow you to customize audio levels precisely, creating tailored sound experiences for different areas.
Ideal for both PA systems and background music installations, the MAX 360Z seamlessly integrates with a wide range of 100V line speakers. For added flexibility, it also includes a low impedance output for transformerless speakers.
Features:
- Built-in USB/FM player for convenient music playback
- Microphone inputs with priority function and ring tones
- Durable Euroblock connectors for reliable connections
- Compact design suitable for desktop or rack-mount installation
CHARACTERISTICS:
ANSWER: 45-22,000 Hz (-10 dB)
DISTORTION: THD+N: <0.5% at 1 kHz
SIGNAL/NOISE RATIO: Mic >75 dB, Line >83 dB, Aux >81 dB
PROTECTIONS: Soft start, over-current, overload, temperature and short circuit
TICKETS:
FUNCTIONS:
MAXIMUM HUMIDITY: 90%
FEEDING: 230/115 V AC 50-60Hz, Power consumption: 490 W, Fuse AC 230 V 6 A / 115 V 12 A
MEASURES: 430 x 89 x 320 mm depth. 2 U rack 19''
WEIGHT: 9'8 kg
ACCESSORIES: FM antenna, Power cable, Rack brackets
- Class D PA amplifier and SMPS switching power supply.
- USB/FM player.
- Microphone inputs with mix, gain and priority level control.
- Chime generator.
- 3 auxiliary inputs.
- Emergency and mute input for connection to alarm and evacuation systems.
- 24 V attenuator priority
- Tone controls.
- 100 V, 70 V and 4 Ω outputs.
- 5 output zones with volume and Off control.
ANSWER: 45-22,000 Hz (-10 dB)
DISTORTION: THD+N: <0.5% at 1 kHz
SIGNAL/NOISE RATIO: Mic >75 dB, Line >83 dB, Aux >81 dB
PROTECTIONS: Soft start, over-current, overload, temperature and short circuit
TICKETS:
- CH 1 balanced mic/line with 48V Phantom. Combo (XLR + 6.3mm) and Euroblock connector. Call tones by contact closure
- CH 2, 3, 4 and 5 balanced mic/line with 48V Phantom. Euroblock connector. Call tones by contact closure
- Mic signal level: 5.6 mV RMS (-45 dBV) / 600 Ω
- Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
- 3 AUX. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV) / 47,000 Ω.
- 1 emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or line 100 V
- Mute (Emergency Priority) by contact closure. Euroblock connector
- 1 Amp-in. RCA connector. Signal level 1.2 V RMS (+ 1.5 dBV)
- 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
- 1 Pre-out. RCA connector. Signal level 1.2 V RMS (+1.5 dBV).
- 100 V, 70 V or 4 Ω speaker output, or 5 100 V speaker zones with 7-position volume selector and OFF (Maximum 240 W per zone). 1 Euroblock connector
- Attenuator priority, 24 V 100 mA and contact closure. Euroblock connector
FUNCTIONS:
- Input Priority (Voice over VOX inputs):
- 100 V Emergency input with highest priority, attenuates all other inputs
- Mute on contact closure, attenuates all inputs except 100 V Emergency input
- Channel 1 with priority over other inputs, selectable level
- Channel 2, 3, 4 and 5 with priority over auxiliary inputs and player, selectable level
- Chime tones: on microphone inputs, on contact closure
- Other features:
- Power-on light ring, AUX input, zone and player indicators Power on, signal, clip, priority and protection activation
- Induction cooling, fanless Silent and maintenance-free
- USB/FM player for ambient music playback
- Autoplay, starts playback automatically when turned on
- Memory of the last selected mode
- Memory of the playback mode (random, repeat)
- Microphone volume
- Master volume
- Auxiliary input or player selector
- Zones with power and 7 volume positions
- Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
- Mic/line/phantom selector, call and priority tones
- Call tone (chime)
- level Priority activation signal level (VOX)
MAXIMUM HUMIDITY: 90%
FEEDING: 230/115 V AC 50-60Hz, Power consumption: 490 W, Fuse AC 230 V 6 A / 115 V 12 A
MEASURES: 430 x 89 x 320 mm depth. 2 U rack 19''
WEIGHT: 9'8 kg
ACCESSORIES: FM antenna, Power cable, Rack brackets
